Vertical Bandsaw with Stationary Table

Model 360 Model 400 Model 450 Model 500 Model 600 Model 700 Model 1000
Vertical Variable Speed Bandsaw with Stationary Table

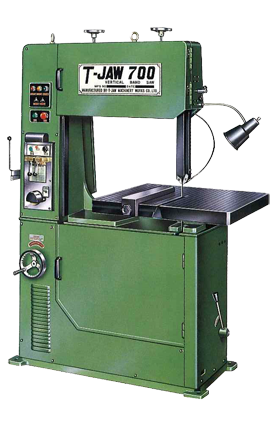

MODEL 700

SPECIFICATION mm (in.)
Height Under Guide 360mm
14-1/8"
Throat, Band to Column 700mm
27-1/2"
Blade Speed 20-394m/min
65-1292ft/min
Blade Width 3-25mm
1/8"-1"
Blade Length 4090mm
161"
Size of Table 740×680mm
29-1/8"×26-3/4"
Tilt, Main Table 15° R, 15° L
15° F, 15° B
Motor 2HP
Machine Size 1420×750×2040mm
55-7/8"×29-1/2"×80-3/8"
Net Weight 700kgs
1540lbs
Ship Weight 800kgs
1760lbs
Packing Slze 1540×930×2100mm
60-5/8"×36-5/8"×82-5/8"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, thermal overload switches, rip fence, 110 volt control & lighting. 　
OPTIONAL ACCESSORIES:
Circle Cutting Attachment
Miter Gauge

STANDARD MACHINE FEATURES:

  • Infinitely variable speed.
  • The band tension is cushioned.
  • Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
  • Interchangeable rubber bonded saw wheels.
  • Brush for cleaning lower drive wheel.
  • Manintenance-free airpump provides air to remove chips from the point of cut.
  • The upper wheel could be adjusted for band tensioning.
  • Hand wheel controlled speed.
  • Adjustable saw blade guides.
  • Machine light is fitted.
  • Change speeds while the machine is in operation, without stopping, without pulley changes.
  • Cast iron frame to minimize machine vibration.
